Full Range Basins Collection

Staron Classic Basin Collection

Classic A3181

  • Internal – L: 422mm | W: 336mm | D: 139mm
  • Colour Availability: Bright White, Quasar White & Pearl
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  A3181 DXF File
๐Ÿ“„ ย MSDS PDF

Classic A3211

  • Internal – L: 508mm | W: 356mm | D: 156mm
  • Colour Availability: Bright White
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ ย A3211 DXF File
๐Ÿ“„ MSDS PDF

Staron Refine Basin Collection

Refine B3150

  • Internal – L: 378mm | W: 278mm | D: 116mm
  • Colour Availability: Bright White
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  B3150 DXF File

Refine B3190

  • Internal – L: 474mm | W: 274mm | D: 116mm
  • Colour Availability: Bright White
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  B3190 DXF File

Refine B3192

  • Internal – L: 480mm | W: 320mm | D: 121mm
  • Colour Availability: Bright White
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron
  • Refine B3192 andย Refine 1712-V Compatible with Dyson Airblade Wash+Dry

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  B3192 DXF File

  • Tested WD06 – Wall Mount Wash + Dry
  • Tap centre to floor is 995mm
  • Top of basin to floor 840mm
  • Wall to front – outside of basin 420mm
  • Wall to front โ€“ Inside of basin 400mm
  • Top of basin to centre of tap 145mm

Refine B3200

  • Internal – L: 500mm | W: 280mm | D: 120mm
  • Colour Availability: Bright White
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  B3200 DXF File

Refine A3148

  • Internal – Diameter: 350mm | Radius: 175mm | Depth: 102mm
  • Colour Availability: Bright White
  • 32mm pop up waste supplied with this basin
  • Above bench mounting
  • Manufactured by Staron

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  A3148 DXF File

Accessible & Baby Bath Collection

Refine 1313-V

  • Internal – Diameter: 324mm | W: 324mm | D: 127mm
  • Colour Availability: Aspen White
  • โ™ฟ๏ธŽ Accessible Design
  • 32mm pop up waste supplied with this basin
  • Manufactured by Gemstone in USA

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  1313-V DXF File

Refine 1814-V

  • Internal – L: 450mm | W: 355mm | D: 124mm
  • Colour Availability: Aspen White
  • โ™ฟ๏ธŽ Accessible Design
  • 32mm pop up waste supplied with this basin
  • Manufactured by Gemstone in USA

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  1814-V DXF File

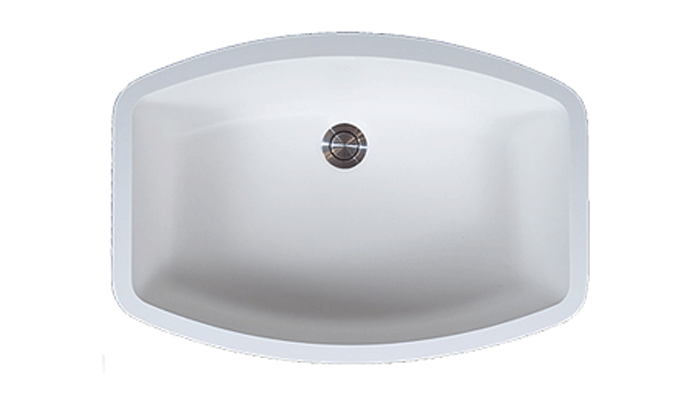

Refine 1712-V
  • Internal – L: 454mm | W: 303mm| D: 145mm
  • Colour Availability: Aspen White
  • โ™ฟ๏ธŽ Accessible Design
  • 32mm pop up waste supplied with this basin
  • Manufactured by Gemstone in USA
  • Refine 1712-V and Refine B3192 Compatible with Dyson Airblade Wash+Dry

๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  1712-V DXF File

  • Tested with WD06 โ€“ Wall Mount Wash + Dry
  • Tap centre to floor 995mm
  • Top of basin to floor 880mm
  • Wall to front – outside of basin 420mm
  • Wall to front โ€“ Inside of basin 400mm
  • Top of basin to centre of tap 110mm

Refine 2213V Baby Bath

  • Internal – L: 318mm | W: 572mm | D: 156mm
  • Colour Availability: Aspen White
  • 32mm pop up waste supplied with this basin
  • Manufactured by Staron



๐Ÿ“„ย  Specification PDF
๐Ÿ“„ย  MSDS PDF
๐Ÿ“„ย  2213V DXF File
